Determining SAE Housing/Flywheel Dimensions for Generators

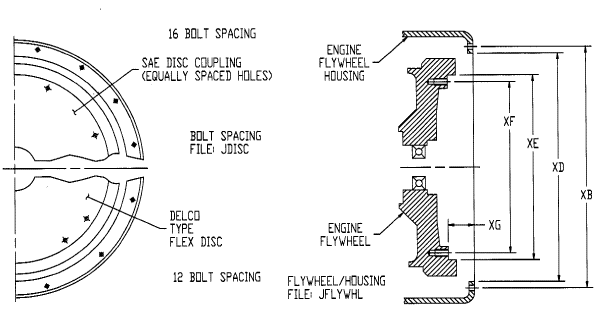

Marathon Electric manufactures generators with standard Society of Automotive Engineers (SAE) adaption configurations. This configuration allows easy coupling to most diesel and gas engines which follow the same SAE standards. The following graphic shows the typical configuration and their respective SAE denomination:

To determine the SAE adaption in your specific application, simply match dimensions XD, XB, XE, XF and XG to arrive at a combination of SAE adaptions for the engine housing and for the engine flywheel, i.e.: SAE#1 Flywheel Housing with SAE#14 Flywheel.

DIMENSIONS in Inches or (millimeters):

Engine Flywheel Housing Dimensions

SAE No. XD XB Tapped Holes Qty. Size
00 31.000 (787) 33.50 (851) 16 1/2-13
0 25.500 (678) 26.75 (679) 16 1/2-13
1/2 23.000 (584) 24.38 (619) 12 1/2-13
1 20.125 (511) 20.88 (530) 12 7/16-14
2 17.652 (448) 18.38 (467) 12 3/8-16
3 16.125 (410) 16.88 (429) 12 3/8-16
4 14.250 (362) 15.00 (381) 12 3/8-16
5 12.375 (314) 13.12 (333) 8 3/8-16
6 10.500 (267) 11.25 (283) 8 3/8-16

Engine Flywheel Dimensions

SAE No. XE XF XG Tapped Holes Qty. Size
21 26.500 (673) 25.25 (641) 0 (0) 12 5/8-11
18 22.500 (572) 21.38 (543) .62 (16) 6 5/8-11
14 18.375 (467) 17.25 (438) 1.00 (25) 8 1/2-13
11-1/2 13.875 (352) 13.12 (333) 1.56 (40) 8 3/8-16
10 12.375 (314) 11.62 (295) 2.12 (54) 8 3/8-16
8 10.375 (264) 9.62 (244) 2.44 (62) 6 3/8-16
7-1/2 9.500 (241) 8.75 (222) 1.19 (30) 8 5/16-18
6-1/2 8.500 (210) 7.88 (200) 1.19 (30) 6 5/16-18
Delco 17.75 17.755 (451) 15.50 (394) .72 (18) 8 5/8-11
Delco 15.50 15.500 (394) 13.88 (353) .72 (18) 8 5/8-11
Delco 12.75 12.750 (324) 11.00 (279) 0 (0) 4 1/2-13
